Digital Current Temperature Humidity Transmitter Industrial SCM Design

Name: Digital Current Temperature Humidity Transmitter Industrial SCM Design
Brand: HUATO
Price: 1 USD

Quality Digital Current Temperature Humidity Transmitter Industrial SCM Design for sale

Brand Name : HUATO

Model Number : HE400A-EX

Certification : ISO9001,ISO14001,ISO18001,CE

Place of Origin : Shenzhen ,China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T,paypal,

Supply Ability : 10000pcs/months

Delivery Time : 7-15 working days

Packaging Details : According to customer's requirements

current output : 4~20mA

Theory : temperature humidity transmitter

Material : ABS

Didplay : LCD

Humidity Range : 0~100%RH

temperature accuracy : ±0.5℃

humidity accuracy : ±3%RH

Resolution : 0.1℃/0.1%RH

Contact Now

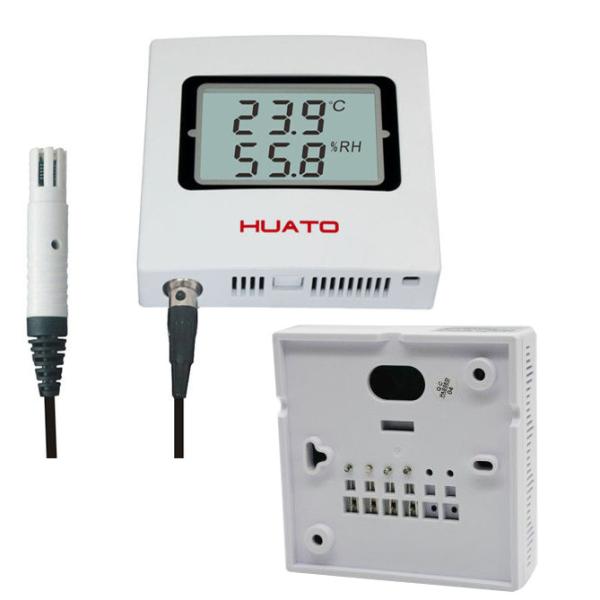

Digital Current Temperature Humidity external Sensor 4~20mA HE400A-EX Transmitter

Introduction:

HE400A-EX is one of the temperature and humidity transmitter developed by HUATO. it adopt high-performance sensors and industrial SCM design ,the quality is guaranteed . This transmitter supports Current output. A special design features was given to it to remove the heat influence from the circuit. It can be mounted on wall, and accuracy is relatively high . HE400 series equipped with a large screen LCD display , which is capable of simultaneously display the temperature and humidity value. What’s more , it has external probe. Please choose the models you need according to the datasheet below.

Features:

Equipped with external sensor and high-performance low-power SCM design.
Industrial design, effectively advoid the influence generated from within.
Various outputs is supported , 4~20mA/0~5V/0~10V/RS485/Modbus.
install and maintain is easy .
It is a Economical and practical device.
Dimensions of products : 100*100*30mm(3.94"*3.94*1.28"inch)
LCD : 60*40mm(2.36"*1.57"inch)
Certificates acquired : CE,ISO

Models list and specifications :


Model	HE400A	HE400A-EX	HE400V5	HE400V5-EX	HE400V10	HE400V10-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	4~20mA		0~5V		0~10V
Wire mode	3 lead terminals		4 lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Model List(modbus/RS 485)
Model	HE400M	HE400M-EX	HE400N	HE400N-EX
Temperature Accuracy	±0.5℃
Humidity Accruacy	±3%RH
Temperature Range	0~50℃	-30~70℃	0~50℃	-30~70℃
Humidity Range	0~100%RH
Sensor type	Internal	External with 3 meters cable	Internal	External with 3 meters cable
Output	Modbus		RS485
Wire mode	4lead terminals
Resolution	0.1℃/0.1%RH
Power supply	9V~30V DC
Net weight	280g
Accessory	Operation manual

Product pictures

Digital Current Temperature Humidity Transmitter Industrial SCM Design

Applications:

HE400 series temperature humidity transmitter desiged for control in conditioning and ventilation application in following sectors : pharmacy, chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

Digital Current Temperature Humidity Transmitter Industrial SCM Design
